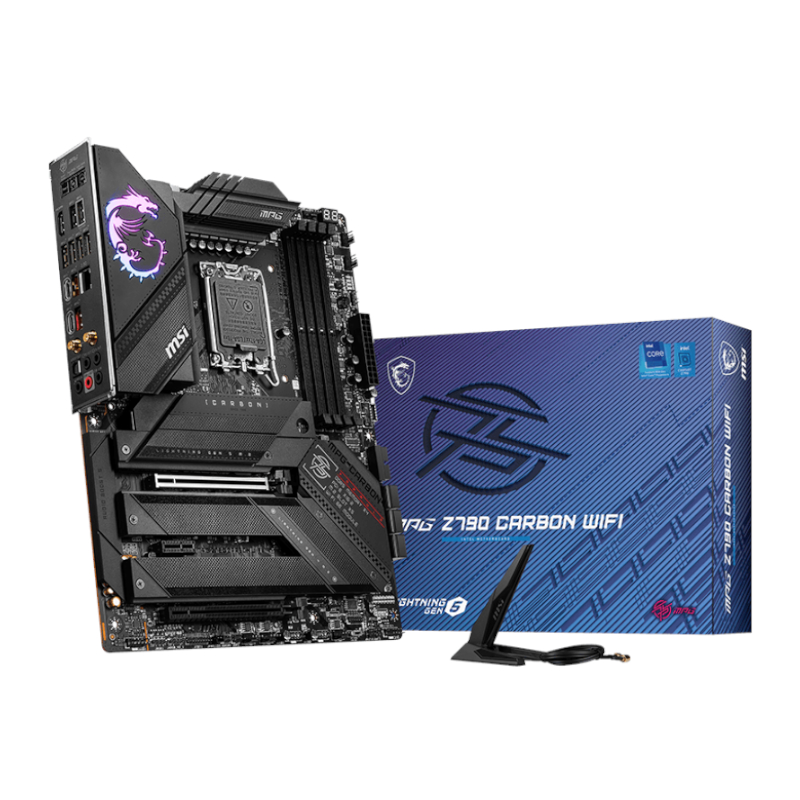

The MSI MPG Z790 CARBON WIFI employs a carbon black colour scheme and RGB lighting to show off different personalities and identities.ย The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion. The Z790 offers a huge step of DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, MPG Z790 CARBON WIFI is ready to deliver world-class memory performance.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.ย Unleash and sustain maximum performance with a flagship VRM design built with a total of Direct 19+1+1 Power Phases. Combining dual power connectors and 105A Smart Power Stage, MPG Z790 CARBON WIFI is ready for the challenge of high-end processors.
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.ย Using USB 3.2 devices has never been faster! MPG Z790 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked โkeep-out-zoneโ allows for easy and safe installation and a perfect fit.
FEATURES:
- Supports 13th /12th Gen Intelยฎย Coreโข / Pentiumยฎย / Celeronยฎย processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7600+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk
- Additional choke thermal pads and M.2 Shield Frozr are built for high-performance systems
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use
- Audio Boost 5: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
- High-Quality PCB: 8-layer PCB made by server-grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
SPECIFICATIONS:
- Socket: 1700
- CPU (Max Support): Supports 12th/13th Gen Intelยฎ Coreโข Processors, Pentiumยฎ Gold and Celeronยฎ Processors
- Chipset: Intelยฎ Z790 Chipset
- DDR5 Memory: 7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 2
- PCI-E X1: 1
- SATAIII: 6
- M.2 Slot: 5
- RAID: 0/1/5/10
- LAN: 1x Intelยฎย 2.5Gbps LAN
- Wireless/Bluetooth: Intelยฎย Wi-Fi 6E
- USB 3.2 ports (Front): 1(Gen 2×2, Type-C), 2(Gen 1, Type A)
- USB 3.2 ports (Rear): 1(Gen 2ร2, Type-C), 1(Gen 2, Type-C), 6(Gen 2, Type A), 2(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- Audio ports (Rear): Realtekยฎย ALC4080 Codec
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- Operating System: Support for Windowsยฎ 11 64-bit, Windowsยฎ 10 64-bit
WHATโS IN THE BOX:
- MSI MPG Z790 CARBON WIFI DDR4 LGA1700 ATX Gaming Motherboard โ Black x1
- Wi-Fi Antenna x1
- EZ M.2 Clips x4
- USB Drive x1
- SATA Cables x2
- JARGB Extension Cable x1
- JRGB Extension Cable(1 to 2) x1
- Cable Stickers x1
- Quick Installation Guide x1
