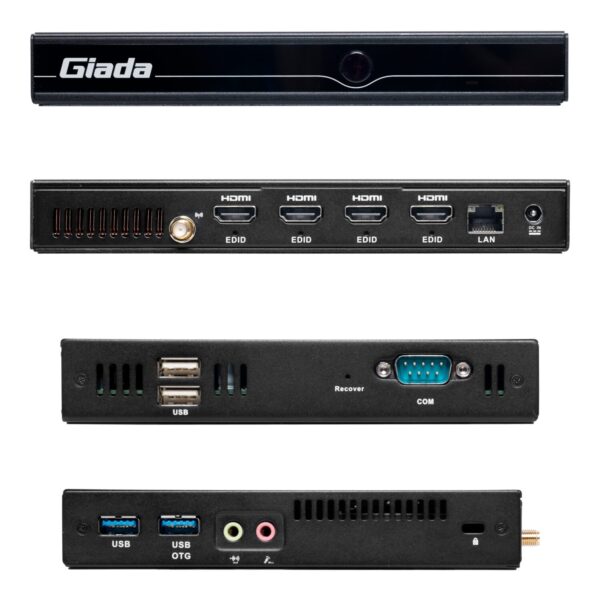

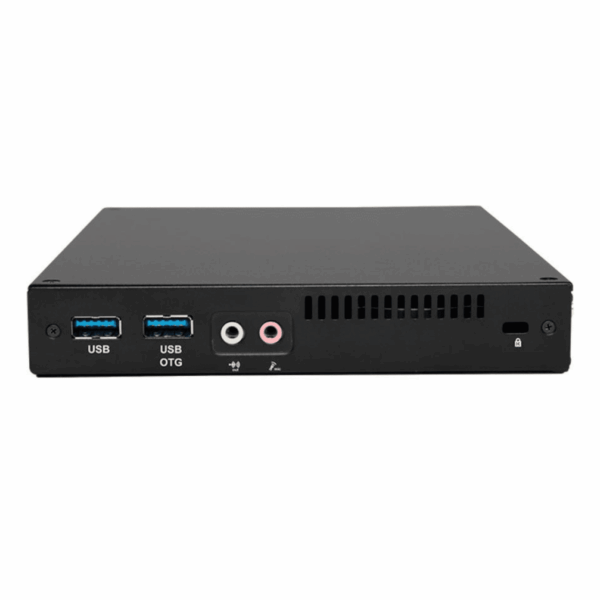

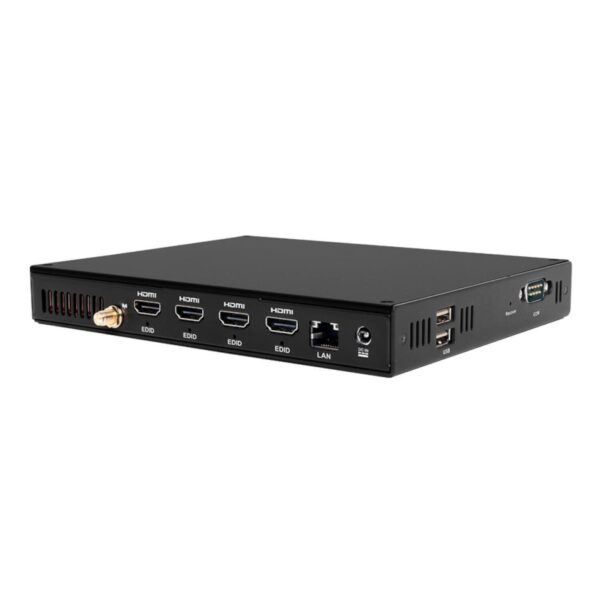

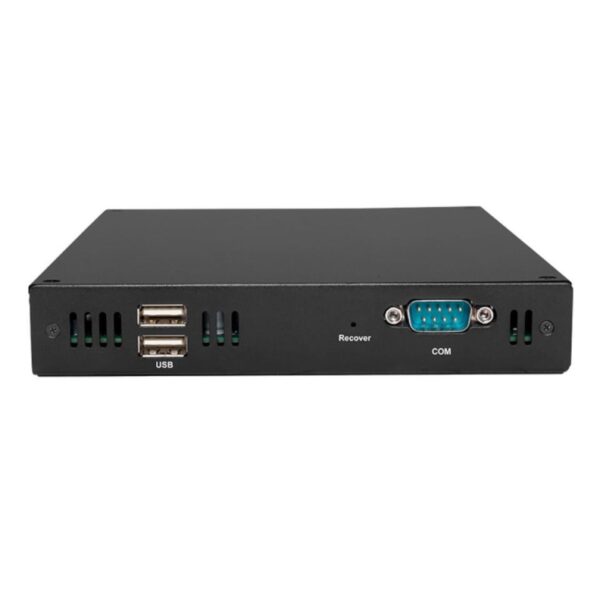

Giada Android 12 Digital Signage Player – D77 with RK3588

Unlock next-level digital display performance with the Android 12 Digital Signage Player, engineered to meet the demands of high-resolution, multi-screen content delivery. The Giada D77 is powered by the advanced Rockchip RK3588 processor, delivering exceptional performance and efficiency for complex signage environments. Equipped with up to 8GB LPDDR4 RAM and 128GB eMMC storage, this system is built for seamless media playback, real-time content updates, and interactive digital solutions.
Designed for enterprise and commercial deployment, the Android 12 Digital Signage Player features four HDMI 2.1 outputs supporting up to 8K resolution, enabling dynamic, immersive visuals across multiple displays. Its slim, fanless chassis ensures silent operation and durability in 24/7 applications, including retail, corporate, education, and transportation environments.
Built on Android 12, the Giada D77 provides a flexible, secure, and customisable operating environment. Rich I/O ports, including USB 3.0, USB-C, RS232, and Gigabit LAN support diverse peripheral integration and network configurations. This Android 12 Digital Signage Player is ideal for digital signage professionals seeking cutting-edge performance, stability, and ease of deployment.
With its compact footprint, high-efficiency processing, and multi-display support, the Giada D77 redefines the capabilities of an Android 12 Digital Signage Player in enterprise-grade signage networks.
FEATURES:

High-performance ARM Architecture powered by Rockchip RK3588 8-core processor
Native Android 12 OS offers an optimised, secure, and flexible platform for digital signage applications
Quad HDMI 2.1 Outputs support up to 4x 4K or a single 8K display for immersive multi-screen deployments
Fanless design ensures quiet operation and high reliability for 24/7 commercial usage
Robust memory and storage with up to 8GB LPDDR4 RAM and 128GB eMMC for fast content rendering and local playback
Wide connectivity options including USB 3.0, Type-C, RS232, and Gigabit LAN for peripheral and network integration
Compact industrial form factor ideal for embedded installations and space-sensitive deployments
Trusted Giada quality ensures long-term lifecycle support and deployment reliability across industries
Flexible mounting supports VESA mounting for seamless integration behind screens or within enclosures
Efficient power management with 12V DC input for streamlined installation in varied environments

SPECIFICATIONS:

CPU
CPU: Rockchip RK3588
Frequency: 2.40 GHz
Processing units: 4 Cores Cortex-A76 & 4 Cores Cortex-A55
TDP: 15 W
Memory
Size: 8 GB,
Type: Onboard 2-channel LPDDR4x
Storage

Onboard:

128 GB, Onboard eMMC
1 x M-key M.2 (2280) for PCIe3.0 X4 SSD (NVMe)

Network
Network Controller: 1 x Realtek RTL 8211E Gigabit Ethernet
Ethernet Interface: 1 x GbE RJ45

Wi-Fi/BT: 1 x E-keyM.2(2230) for Wi-Fi/BT module,
Supporting Wi-Fi 5 /6

Mobile Network:

1 x B-key M.2(3042) for 3G /4G
1 x SIM Slot

Display
GPU: ARM Mali-G610 MP4 GPU
Graphic Engine: OpenGL ES 1.1/2.0/3.2, OpenCL 1.1/1.2/2.0, Vulkan 1.1/1.2
Multi-Media:

H.265/H.264/AV1/AVS2 etc. video decoder, up to 8K@60fps
8K@30fps video encoders for H.264/H.265

Display Interface:

3 x HDMI (Max. 4096 x 2160 @60 Hz)
1 x HDMI (Max. 1920 x 1080 @60Hz)

I/O interface
USB:

1 x USB3.2 Gen1 (OTG), 1 x USB3.2 Gen1
2 x USB2.0

Serial Port: 1 x RS232
Audio: 1 x MIC-IN, 1 x AUDIO-OUT
Button: 1 x Power on, 1 x Recovery
Antenna:

1 x Connector for Wi-Fi/BT
1 x Connector for 3G/4G (Reserved)

System
Watchdog Timer: Yes
Auto Power On: Yes
RTC: Set up independently every day, a week as a cycle
Power Requirement: DC-IN, 12 V/2.08 A
Dimensions: 18.96 x 14.83 x 2.6 cm
Construction: Metal, Black
Operating System: Android 12
Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
Humidity: 95% @ 45°C (non-condensing)
Certifications: CE, FCC Class B

WHAT’S IN THE BOX:

Giada Android 12 Digital Signage Player – D77 with RK3588 x1
