The Antec CX500M and Atom V550 Starter Combo is a great way to upgrade or replace your current setup. Featuring a tempered glass micro-ATX gaming chassis bundled with a 550W non-modular power supply, this starter combo is a perfect option for customizing your PC. The combination of this versatile chassis and 550W power supply makes this ideal for use with graphics cards up to an RTX 4060Ti.

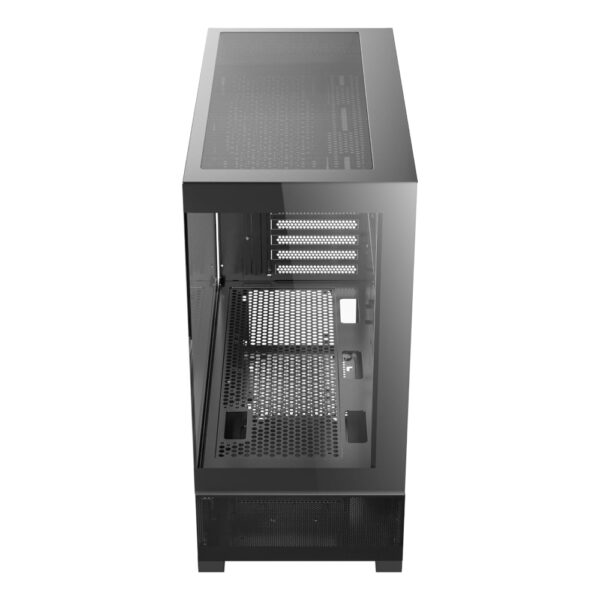

The Antec CX500M Basic Gaming Chassis is designed for gamers who want both style and performance. Its panoramic design provides a sleek, transparent appearance that highlights your hardware beautifully. The tool-free glass side and front panels feature a clip design for easy and safe installation, while the bottom mesh exterior improves cooling efficiency and prevents heat buildup. The CX500M Basic allows for up to 9 fans and a 360mm water cooling radiator on top, ensuring rapid heat dissipation and optimal performance.
Antec’s new generation of Atom power supplies is crafted for quality, efficiency, and performance. Featuring an output of 550W, and a quiet 120 mm silent fan. The 120mm silent fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of reliable operation. For safety, the CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. It also features a thermal manager which gives you advanced fan control for optimal heat and noise management and will allow your PSU to stay at an optimal temperature. The Antec Atom V550 ATX Power Supply is the power supply you won’t want to miss out on.
FEATURES:
Micro-ATX gaming chassis and 550W power supply combo
Panoramic 270° design for a transparent and sleek look.
Tool-free glass side and front panels with a clip design for easy and safe installation.
Vertical airflow supports up to 9 fans, speeding up heat dissipation.
Includes a Type-C 3.2 Gen 2 port for high-speed data transfer.
Top and Bottom Magnetic Dust Filters
550W Output
CircuitShield™ – Industrial grade protections: OPP/OVP/UVP/SCP
120mm Silent Fan
Thermal Manager – advanced fan control for optimal heat and noise management.
Non-modular Design
SPECIFICATIONS:

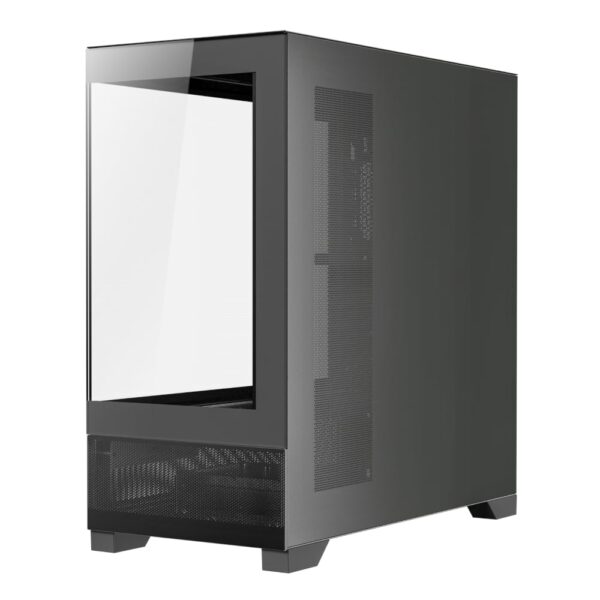

Antec CX500M Basic Micro-ATX | ITX Mini-Tower Gaming Chassis
Form Factor: Mini Tower
Materials: Steel + Glass
Mainboard Support: Micro-ATX, ITX
Front Access & Controls: Power, USB2.0 x2, USB3.0 x 1, Headphone/Mic Combo Jack
Side Panel: Tempered Glass
Drive Bays:
3.5″/2.5″: 2/1
2.5″: 1
Expansion Slots: 5
Fan Support:
Top: 3 x 120mm/2 x 140mm
Side: 2 x 120mm
Power Supply Shroud: 3 x 120mm
Rear: 1 x 120mm
Radiator Support:
Top: 120/140/240/280/360mm
Clearance:
Max GPU Length: ≤415mm
Max CPU Cooler Height: ≤165mm
Max PSU Length: ≤210mm (With HDD), ≤270mm (Without HDD)
Cable Routing Space: ≤ 23mm
Dust Filter: Top / Bottom
Colour: Black
Product Dimensions: 43.6 x 21 x 44.6 cm
Product Weight: 5900g

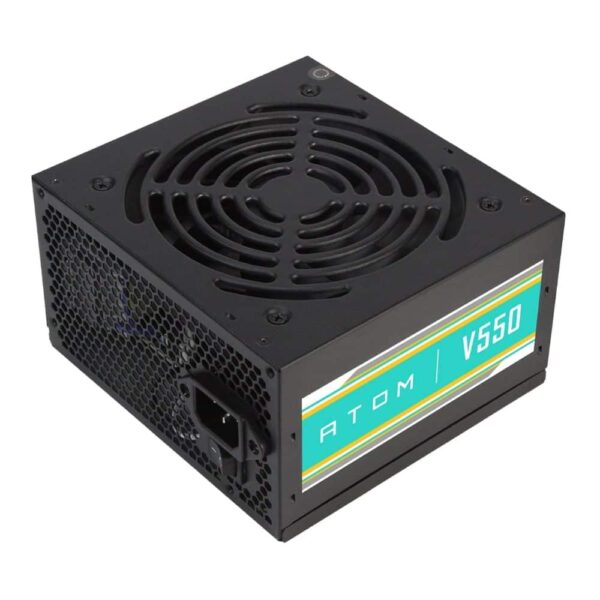

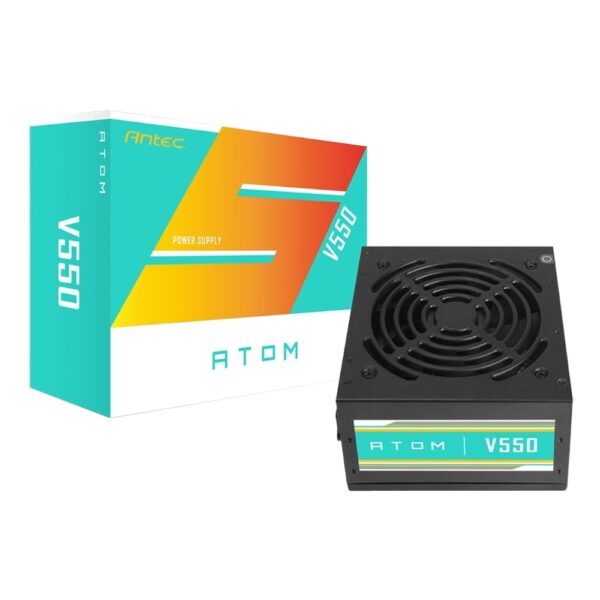

Antec Atom V550 ATX Power Supply
Input: 230Vac, 5A, 47-63Hz
Output: +3.3V/18A, +5V/16A, +12V/42A, -12V/0.3A, +5Vsb/2.5A
Total Output: 550W
Connectors:
24-Pin Main Connector x1
8(4+4) Pin EPS12V x1
8(6+2) Pin PCI-E x2
SATA x5
Molex x2
FDD x1
Cooling: 120mm Silent Fan
WHAT’S IN THE BOX:
Antec CX500M Basic Micro-ATX | ITX Mini-Tower Gaming Chassis – Black x1
Antec Atom V550 550W ATX Power Supply – Black x1
